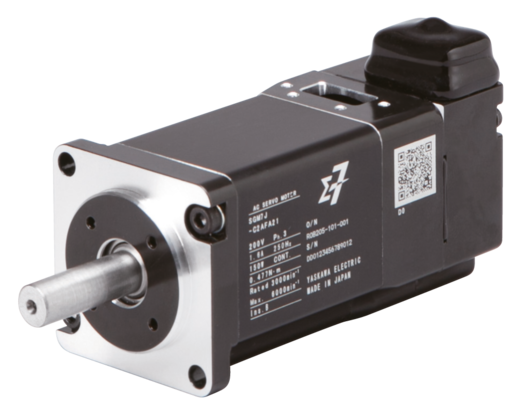

SGM7J

SGM7J-08A7A2E

Packed with Performance

Overview

24-bit high-resolution encoder installed
High efficiency, low heat generation
Downsizing by up to 20%
Flange compatible with Sigma-5
Medium inertia, high speed

Technical Details

Input power supply
200 V

Rated output
0.75 kW

Shaft end
Straight without key

Encoder resolution
24 bit

Encoder type
Absolute

Options
With oil seal and holding brake (24 VDC)

Height
94.7 mm

Width
80 mm

Depth
184 mm

Weight
2.8 kg

Allowable Load Moment of Inertia
12 Times

Rated torque
2.39 Nm

Instantaneous maximum torque
8.36 Nm

Rated Motor Speed
3000 1/min

Maximum motor speed
6000 1/min

Motor Moment of Inertia
1.77 x10⁻⁴ kg·m²

Flange Dimension (LC)
80 mm

Flange Diameter (LA)
90 mm

Shaft End Diameter (S)
19 mm

Shaft End Length (Q)
40 mm

Downloads

	Name
	Sigma-7 AC Servo Drives \| Brochure DE Brochure YEU_MuC_Sigma-7-Series_DE_V4 Brochures \| tysk	Brochures	tysk
	Sigma-7 AC Servo Drives \| Brochure EN Brochure YEU_MuC_Sigma-7-Series_EN_V4 Brochures \| engelsk	Brochures	engelsk
	Sigma-7 AC Servo Drives \| Brochure FR Brochure YEU_MuC_Sigma-7-Series_FR_V4 Brochures \| fransk	Brochures	fransk
	Sigma-7 AC Servo Drives \| Brochure IT Brochure YEU_MuC_Sigma-7-Series_IT_V3 Brochures \| italiensk	Brochures	italiensk
	Sigma-7 AC Servo Drives \| Brochure CZ Brochure YEU_MuC_Sigma7-Series_CZ_V3 Brochures \| tjekkisk	Brochures	tjekkisk
	Sigma-7 AC Servo Drives \| Brochure ES Brochure YEU_MuC_Sigma7-Series_ES_V3 Brochures \| spansk	Brochures	spansk
	Sigma-7 AC Servo Drives \| Brochure PL Brochure YEU_MuC_Sigma7-Series_PL_V3 Brochures \| polsk	Brochures	polsk
	Sigma-7 AC Servo Drives \| Brochure TR Brochure YEU_MuC_Sigma7-Series_TR_V3 Brochures \| tyrkisk	Brochures	tyrkisk
	Sigma-7 200V Product Catalog Document No. YEU_MuC_Sigma7_200V_Cat_EN_v6 Brochures \| engelsk	Brochures	engelsk
	Sigma-7 Series AC Servo Drive Rotary Servomotor Product Manual SGM7M, SGM7J, SGM7A, SGM7P, SGM7G, SGMMV, Manual No. SIEP S800001 36I<11>-0, Published Aug 2024 Technical documentation \| engelsk	Technical documentation	engelsk
	Sigma-7 AC Servo Motor Series \| EU and UK Declaration of Conformity Sigma-7 AC Servo Motor Series SGM7A, SGM7J, SGM7G, SGM7P, Low Voltage Directive, Electromagnetic Compatibility Directive, RoHS Directive, DoC-No. 900-266-511 <8> issued March 8th, 2023 Certification \| engelsk	Certification	engelsk
	EPLAN Makros Sigma-7 Servo Series 200V Rotary Servomotor Series SGM7J EPLAN \| engelsk	EPLAN	engelsk
	EPLAN Makros Sigma-7 Servo Series 400V Rotary Servomotor Series SGM7J EPLAN \| engelsk	EPLAN	engelsk
