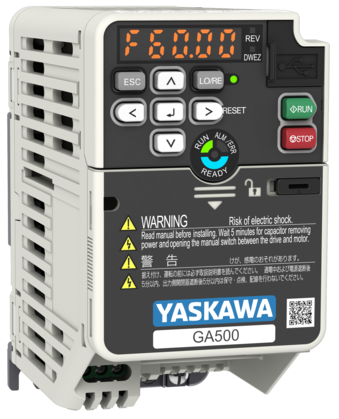

GA50C2004AJA

• Input power supply
• 200 V

• Rated output current (HD)
• 3 A

• Rated output current (ND)
• 3.5 A

• 50% ED Rated Output Current
• x No

• Overload Tolerance (ND)
• 110 % for 60 s

• Overload Tolerance (HD)
• 150 % for 60 s

• Max. applicable motor power (HD)
• 0.55 kW

• Max. applicable motor power (ND)
• 0.75 kW

• Input power phases
• 3-phase

• EMC filter (embedded)
• x No

• Motor type
• Induction motor, Permanent magnet motor, Synchronous reluctance motor

• Encoder
• x No

• Standards compliance
• cUL, CE, RoHS, UL, UKCA

• Height
• 128 mm

• Width
• 68 mm

• Depth
• 71 mm

• Weight
• 0.9 kg

• Cooling method
• Air cooling

• Enclosure
• Finless (IP20)

• Environmental Specifications
• Standard

• Analog Input
• 2

• Analog Output
• 1

• Digital Input
• 7

• Digital Output
• 3

• Safety Level
• SIL3

• Performance Level
• PL e

• Torque Control
• Standard

• Braking transistor
• Built-in

• Motor Thermal Protection
• Standard

• Max Output Frequency
• 590 Hz
