AR-serie
AR700
Small Arc Welding Robot with 727 mm reach
Overview

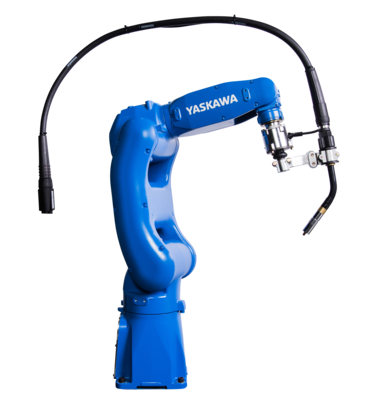

The compact MOTOMAN AR700 arc welding robot provides high path accuracy and great stability.
With a payload of up to 8 kg and a working range of 727 mm this robot enables accurate arc welding of small workpieces with high-quality results.
Supporting the full range of the well known MOTOMAN welding functionality, AR700 robots offer a good alternative to our collaborative welding robots when batch sizes are larger or short cycle times are required.
Technical Details
- Number of Axes
- 6
- Payload
- 8 kg
- Max. Working Range
- 727 mm
- Repeatability
- 0.01 mm
- Weight
- 35 kg
- Power Supply
- 1 kVA
- Maximum Speed S Axis
- 455 °/s
- Maximum Speed L Axis
- 385 °/s
- Maximum Speed U Axis
- 520 °/s
- Maximum Speed R Axis
- 550 °/s
- Maximum Speed B Axis
- 550 °/s
- Maximum Speed T Axis
- 1000 °/s
- Mounting Options
- Ceiling, Wall, Floor
- Further Specifications
- x No
