HC-serie
HC10
10 kg Payload Collaborative Robot
Overview

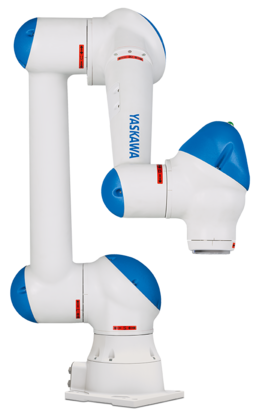

The MOTOMAN HC10 is a 6 axis human-collaborative robot with a payload of up to 10 kg. It provides an absolute reach (S/L-Axis center of rotation to R/T-Axis center of rotation) of 1,379 mm and an effective reach (S/L-Axis center of rotation to Point P) of 1,200 mm.
Operator’s safety is assured by a Power and Force Limit technology that stops the robot in case of contact with an operator.
The MOTOMAN HC10 robot can operate without additional protective measures like a safety fence, depending on the risk assessment.

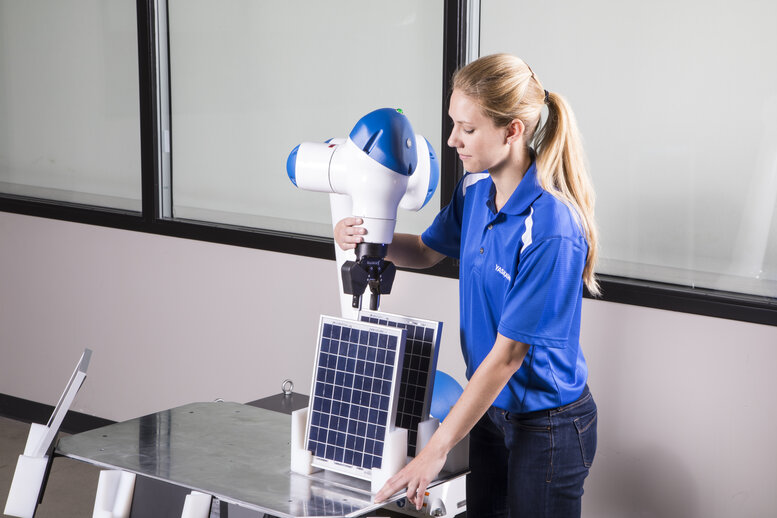

Installation, Setup and Programming is very easy and intuitive, by using hand guiding or Smart Pendant.
Technical Details
- Number of Axes
- 6
- Payload
- 10 kg
- Max. Working Range
- 1379 mm
- Repeatability
- 0.1 mm
- Weight
- 47 kg
- Power Supply
- 1 kVA
- Maximum Speed S Axis
- 130 °/s
- Maximum Speed L Axis
- 130 °/s
- Maximum Speed U Axis
- 180 °/s
- Maximum Speed R Axis
- 180 °/s
- Maximum Speed B Axis
- 250 °/s
- Maximum Speed T Axis
- 250 °/s
- Mounting Options
- Floor, Wall, Ceiling
- Further Specifications
- x No
